ULog Replay (Hawkeye)

Hawkeye replays PX4 ULog (.ulg) flight logs as interactive 3D playback. This page covers single-log replay: loading a file, navigating with the transport controls, and dropping markers. For multi-drone analysis (multiple logs loaded together, takeoff alignment, correlation statistics), see Multi-Drone Replay.

Loading a log

hawkeye --replay path/to/flight.ulg

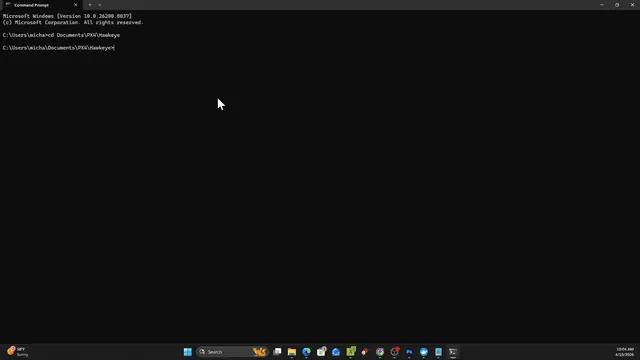

On launch, Hawkeye opens the file, parses its header, pre-scans the entire flight to build a timestamp index and detect vehicle type, flight mode transitions, and the takeoff moment. It then prints a summary and starts playing:

ULog replay: flight.ulg (287.3s, 289 index entries)
  Flight modes: Takeoff@12s Mission@15s RTL@250s Land@276s
  Takeoff: 12.3s (CUSUM conf=92%)

ULog topics consumed

Hawkeye reads these PX4 topics from the log:

Topic	Required	Purpose
vehicle_attitude	yes	Orientation quaternion
vehicle_local_position	yes	NED position, velocity
vehicle_global_position	no	GPS latitude, longitude, altitude
vehicle_status	no	Vehicle type, arming state, flight mode
home_position	no	Authoritative home location
airspeed_validated	no	Airspeed sensor data
logging	no	STATUSTEXT warnings

Logs without GPS or home data fall back to local position with an estimated reference frame. See Position Data Tiers for the trust hierarchy.

Playback interpolation

ULog files typically record position at 5 to 10 Hz. Hawkeye interpolates between samples using dead-reckoning (velocity integration) to produce smooth playback at the display frame rate. This is on by default. Press I to toggle and see a toast confirmation. With interpolation off, you see the raw sample positions as a stairstep motion.

Transport controls

The transport bar runs along the bottom of the Console HUD during replay. It shows the playhead, scrubber, and marker ticks for the full flight duration.

Key	Action
Space	Pause / resume
+ / -	Increase / decrease playback speed
← / →	Seek 5 seconds backward / forward
Shift+← / Shift+→	Frame step (20 ms)
Ctrl+Shift+← / Ctrl+Shift+→	Seek 1 second
R	Restart from beginning
Shift+L	Toggle loop
I	Toggle interpolation
L	Toggle marker label visibility
Y	Toggle HDG / YAW display

Playback speed cycles through 0.25×, 0.5×, 1×, 2×, 4×, 8× with + and -. The current speed displays in the HUD.

Markers

Markers let you annotate specific moments during a flight: the takeoff, the point where a control mode changed, the moment of a failure. Each marker stores the 3D position, playback time, and an optional text label.

Dropping markers

Key	Action
B	Drop a marker at the current position and time
B then L	Drop a marker and open the label input
Shift+B	Delete the current marker

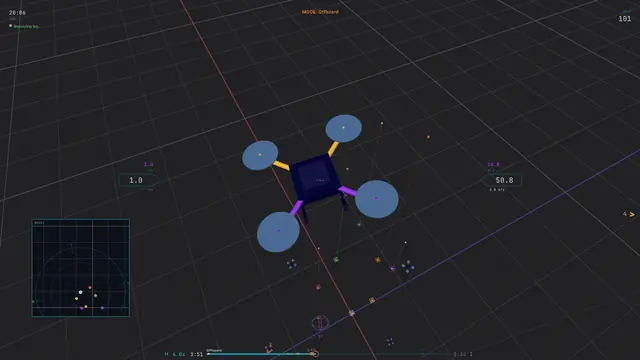

When you drop a marker with B, a sphere appears at the drone's current 3D position, anchored to the current playback time. Press B then L in quick succession to drop a marker AND immediately open a text input for a label. Type up to 48 characters and press Enter.

Labels always face the camera (billboarding) and scale with distance so they stay readable at any zoom level.

Navigating markers

Key	Action
[ / ]	Previous / next marker of the selected drone
Ctrl+[ / Ctrl+]	Previous / next marker across all drones (multi-drone)
Shift+[ / Shift+]	Track from marker (see below)
L	Toggle marker label visibility

Jumping to a marker with [ or ] seeks playback to that marker's time and keeps the current camera mode (Chase, FPV, or Free).

Track from marker (Shift+[ / Shift+]) does something different: it seeks to the marker's time, moves the camera to the marker's 3D position, and switches to Free camera mode. This puts you at the exact spot where the marker was dropped, looking at the scene from that vantage point. Useful for inspecting what was happening at a specific location without the camera following the drone away from it.

Marker types

Three visual types, distinguished by shape:

• User markers render as 3D spheres in the viewport and diamonds on the timeline. Manually dropped with B.
• System markers render as 3D cubes and squares on the timeline. Auto-generated from ULog flight mode transitions (Takeoff, Mission, RTL, Land, etc.). Not user-editable.

Marker colors

User marker colors are computed from the snapshotted telemetry at the marker's position (roll, pitch, vertical speed, ground speed) using the current trail mode and theme. If you switch trail modes, marker colors update to match: directional mode shows attitude-based colors, speed ribbon mode shows heat-gradient colors, drone color mode shows the fleet palette color. Switching themes also updates marker colors since the color palette comes from the theme.

System markers use distinct accent colors per mode transition type.

Multi-drone marker navigation

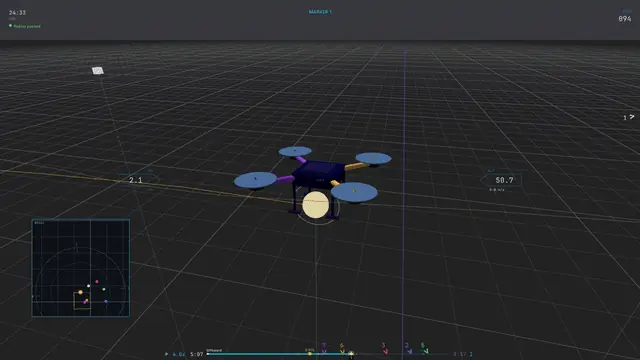

In a multi-drone replay, each drone has its own marker list. The transport bar shows markers from all loaded drones interleaved, with non-selected drones' markers dimmed.

[ and ] cycle only the selected drone's markers. Ctrl+[ and Ctrl+] cycle globally across all drones, interleaved by time.

Next steps

Once you're comfortable with single-log replay, the big features are on the multi-drone side:

• Multi-Drone Replay for loading multiple logs, deconfliction, takeoff alignment, and correlation analysis
• The HUD for Console vs Tactical modes and annunciators that fire on marker crossings
• Command-Line Reference for all replay-related flags including --ghost for overlay comparison
